tipper truck bodies
Tipper truck body is a specialized vehicle designed for the transportation and unloading of bulk materials—such as sand, gravel, and construction waste. It is equipped with a hydraulic system to facilitate efficient dumping operations.
Engineered for both durability and efficiency, our tipper truck bodies are constructed from high-strength aluminum alloy and can be customized to meet the specific requirements of the mining, construction, and agricultural sectors.
Get Free Quote of tipper truck bodies
Features
- Environmentally Friendly
- Seamless Welding
- Fuel-Efficient
- Long-Lasting
- High Load Capacity
- Door Opening Protection
- Customizable
- Self-Maintainable
Why Choose composite-box?
Rectangular Truck Body (Traditional): High space utilization, it is suitable for transporting loose, low-density materials. Constructed from high-strength 6061 aluminum alloy reinforced with external ribs, it possesses exceptional overall structural rigidity.
Skeletal Design: Utilizing an “internal rectangular panel + external skeletal frame” configuration, this design ensures robust torsional resistance under heavy loads without significantly increasing the vehicle’s tare weight.
Integrated Subframe: Nested structure design, lowered the tipper’s center of gravity, thereby enhancing cornering stability and safety.
Application Scenarios
Construction Industry
(transportation of construction waste, sand and soil handling, etc.)
Mining and Quarrying
(transportation of ore, gravel, etc.)
Agriculture
(transportation of crops and agricultural waste, etc.)
Waste Collection
(waste transportation)
Three Key Application Scenarios:
- Mining / Heavy-Duty Series
Suitable for: Ores and rocks.
Features: Bottom plate thickened to 10mm+; standard high front panel for impact protection; box-section beam design for superior torsional resistance. - Engineering / Construction Series
Suitable for: Sand, gravel, and construction waste.
Features: High impact resistance and dent resistance; side panels feature a trapezoidal profile design. - Grain / Bulk Cargo Series
Suitable for: Grains and fertilizers.
Features: Lightweight aluminum alloy structure; labyrinth-style sealing mechanism for leak-proof and moisture-proof protection.
Customization Options
- Various specifications, dimensions, rated load capacities, etc.
- Functional Customization: Specialized anti-corrosion coatings, anti-slip designs, reinforced body structures, etc.
- Chassis Wheelbase: Determines the maximum length of the cargo body.
- Transported Material Density: High-density materials (ore) require reduced side wall heights, while low-density materials (grain, wood chips) allow for increased side wall heights.
- Unloading Method: Rear-tipping vs. Side-tipping (influences the layout of reinforcing ribs).
Technical Specifications
| Length | Width | Height | Capacity | Load Capacity | |
| Small (4×2) | 4.5-6m | 2.4-2.5m （Subject to road traffic regulations） | 1.6-2m | 5-8m³ | 5-8t |
| Medium (6×4) | 6-7m | / | 2.3-2.4m | 10-15m³ | 10-15t |
| Large (8×4) | 7-8m | / | 2.4-2.5m | 15-30m³ | 20-40t |
Detailed Views

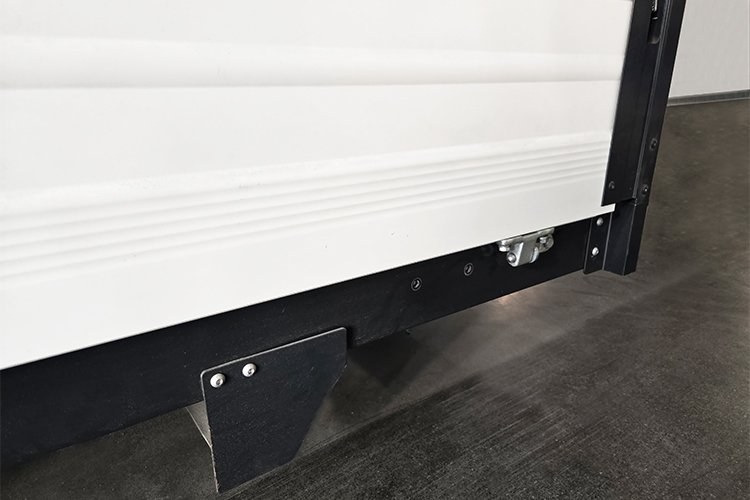

Tailgate

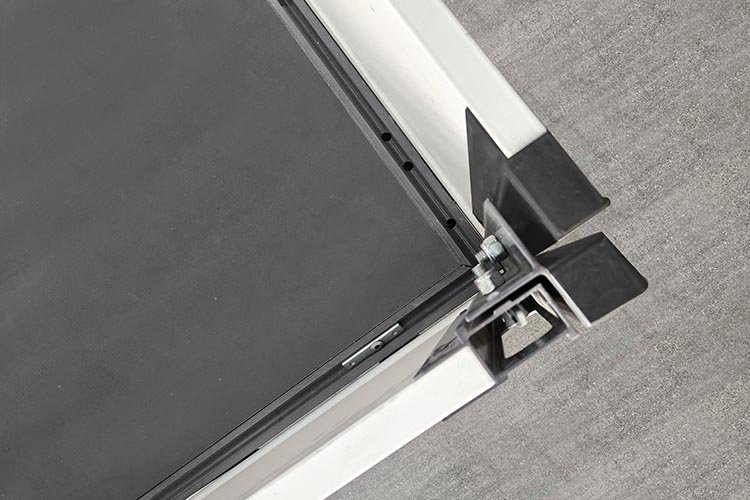

Floor

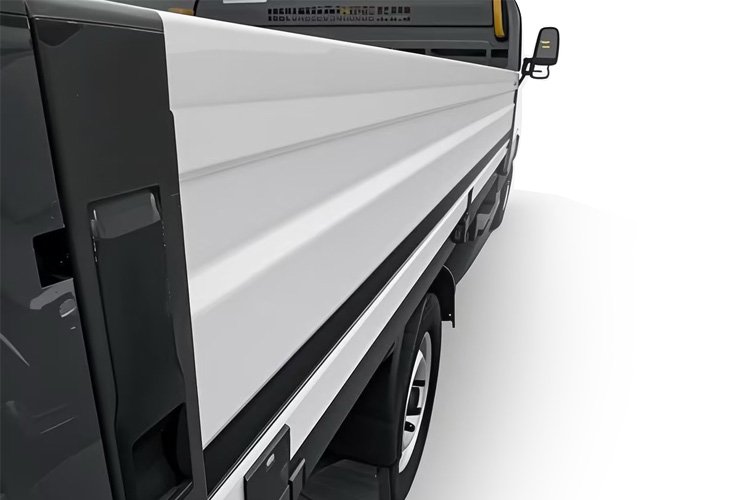

Side Panel

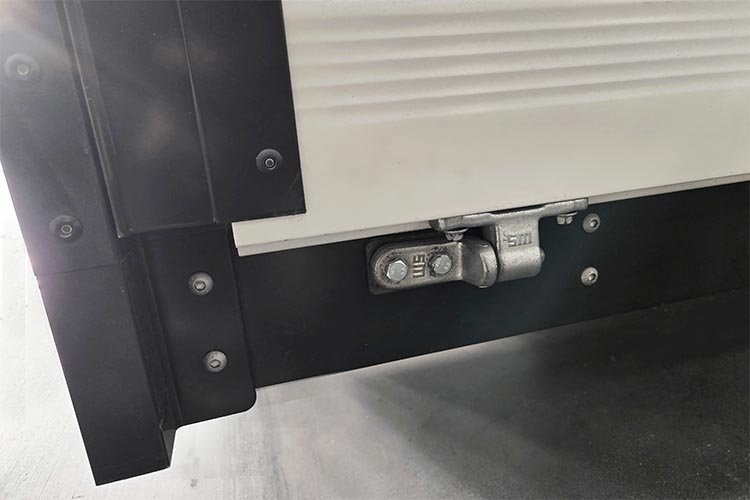

Hinge
Maintenance and Care
How to Extend the Service Life of a tipper Truck Body?
Perform regular inspections and maintenance, avoid overloading, utilize the hydraulic system properly, prevent corrosion and rust, promptly repair any damage, maintain cleanliness, adhere to standard operating procedures, and minimize severe jolting.
