Best Lightweight small RV Trailer Manufacturer

Professional small refrigerated freezer trailer body best solution supplier

Composite Box specializes in delivering CKD bodies. We also produce small refrigerated and freezer trailers using FRP or CFRT foam panels. We offer a complete solution. Foam cores are XPS or PU, with wall and side panels from 50 mm to 120 mm in thickness. Insulation is excellent.

We can customize power supplies and provide energy-efficient fridges. They last over 10 years. Available in single or multi-temperature options.

We are the best manufacturer of trailer kits. We easily deliver and install them for your refrigerated and freezer trailers, whether you are a trailer dealer or a rental company. A one-stop shop for you.

Size:

We offer small trailers from 2.5 meters to 8 meters in length. Wheels are single axle, dual axle, and triple axle. Lengths range from 2.5 to 6 metres. Capacity can be 7,000 lbs or more and 3,175 kg or more. You can customize any size.

specificities:

Composite Box ’s small refrigerated trailers use different types of FRP foam panels based on the location. The balanced FRP XPS foam panel structure gives them a long life and great insulation.

With the stronger roof and walls, we can keep the temperature at -20℃ to 50℃.

High quality FRP sandwich panels, T:50-120mm
Fitted with full size wheels, bearings, guide wheels, galvanised wheel arches
Wear-resistant brake pads

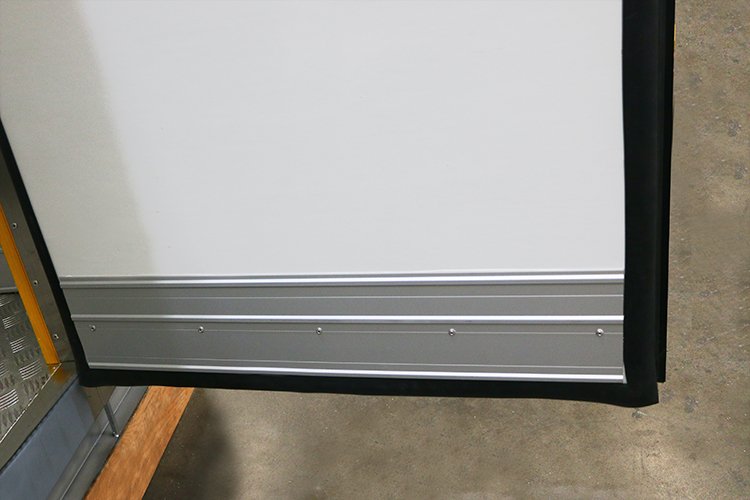

Thick rear door
Internal LED light strip
Large loading capacity: can hold 2 and more pallets
Insulation Foam: We make foam boards with PU, XPS for excellent insulation.

Use of hot-dip galvanized chassis
Equipped with weighted brackets.
Independent torsion suspension.
Lightweight: Lighter than steel or aluminum, thanks to the use of FRP foam panels.
Long life span (the) life of more than 10 years with proper maintenance.
Multi-temperature zoning: you can divide the trailer body into many temperature zones.
Anti-skid floor: Thickened 60 mm anti-skid floor (aluminum alloy + FRP) with skirting board.
Kit option: our trailer supports customization, with 15+ kit options.

refrigerated unit:

Category: Refrigeration unit for refrigerated trailers
Refrigerant: R404A.
Refrigeration capacity (maximum optional): engine 0 ℃ / 9600 W (-20 ℃ / 5300 W)
Standby power (maximum optional): 0 ℃ / 8800 W (-20 ℃ / 4840 W)
Standby battery voltage: AC 380V/50Hz/3PH; AC 220V/60Hz/3PH.
Unit voltage: DC 12 V.
Compressor Displacement (Maximum Optional): 466 cc.
Evaporative air volume (maximum optional): 2,580 m³/h.
Defrost: Automatic defrost (thermal defrost) and manual forced defrost.
Optional: remote data recording; remote control function.

Sturdy structure:

His production cost will be much higher than the dry van, whether it’s a small or heavy-duty trailer. So, we focus more on the structure and the accessories’ service life. Thus, the shell is very important.

Refrigerated trailers use durable, high-strength fiberglass. It is waterproof, scratch-, dent-, rust-, and corrosion-resistant. It can withstand harsh environments while keeping the trailer’s appearance neat. Our small freezer trailer has the same structure as the large refrigerated one. We will cut no corners.

Strong insulation performance:

We use XPS or PU foam. The panel thickness is 30-120 mm. You can adjust the density and thickness as needed. XPS foam is non-absorbent. Its insulation is second only to PU foam, and it has a higher density. You can keep excellent insulation in -20℃ or 50℃.

Composite Box

Application of Small Reefer trailer

Insulated trailer: Used for transporting goods that are sensitive to high temperatures.
Refrigerated small trailers: Our trailers are for short-distance purposes. These include produce and meat delivery, catering, florists, and convenience store transport.
Freezer small trailers: Frozen trailers can transport goods that must stay at -18℃. This includes ice cream, meat, flowers, and medications. They are suitable for long-distance transport.

Comparison of different plastic and metal panels:

Attribute	FRP Panels	FRP+CFRT Panels	Galvanized Steel panels	Color Steel Sandwich Panel
Outer Material	FRP	Outer: FRP Inner: CFRT (Continuous Fiber Reinforced Thermoplastic)	Galvanized Steel	Aluminum Alloy
Core Material	XPS (Extruded Polystyrene) or PU Foam	XPS or PU Foam	XPS or PU Foam	XPS or PU Foam
Advantages	1. Aesthetic, suitable for high-demand appearance 2. Strong impact resistance, durable 3. UV-resistant, weatherproof 4. Repairable, long service life 5. Perfect match with XPS, PU foam core materials	1. Strong impact resistance 2. Lower cost, economical and practical 3. CFRT lamination technology provides performance upgrades 4. Suitable for freezer trailer and large-scale applications	1. Widely used in early applications, mature technology 2. Certain impact resistance	1. Lightweight, rust-proof 2. Clean and aesthetic appearance 3. Lightweight, suitable for weight-sensitive applications

Notes:

Comprehensively comparing the above table, FRP + CFRT panels structure is by far the best choice for all businesses and individuals, both in terms of cost and performance.
It supports customization in various sizes.

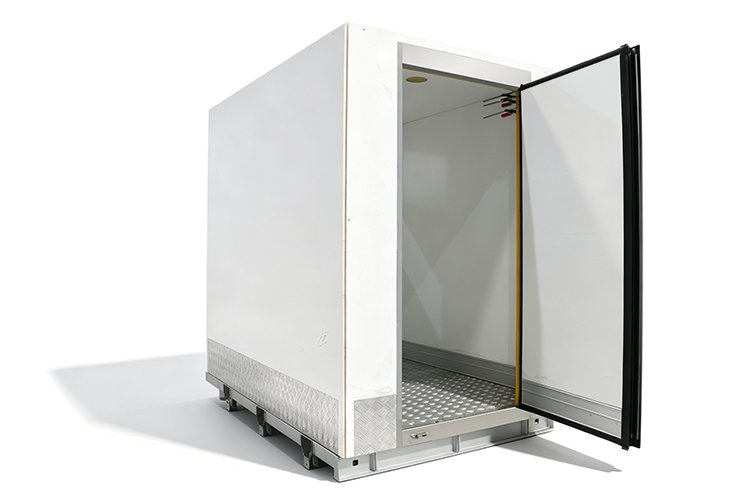

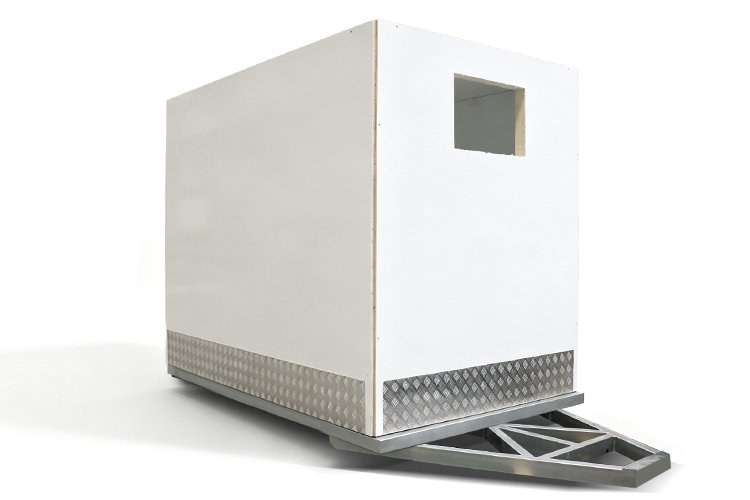

Small refrigerated trailer case parameters:

Specification	Details
External Dimensions	3.5 m (Length) x 1.8 m (Width) x 1.8 m (Height)
Internal Dimensions	3.44 m (Length) x 1.64 m (Width) x 1.63 m (Height)
Weight	146 kg
Body Panel	75mm FRP skin XPS foam core panel
Floor Treatment	Diamond-pattern anti-slip aluminum plate

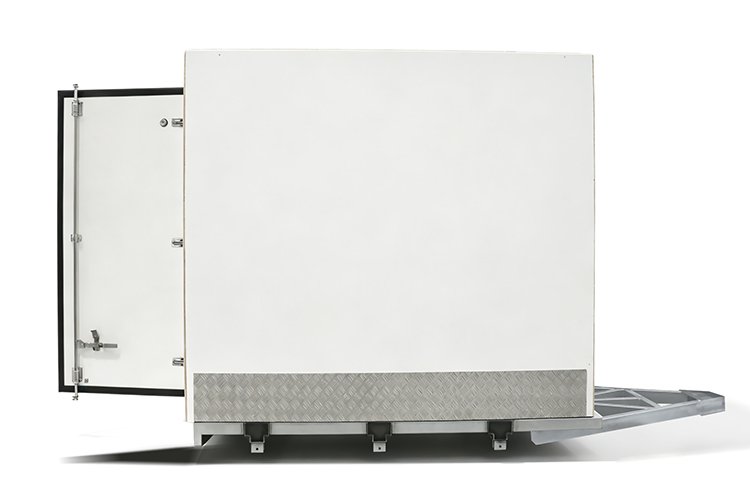

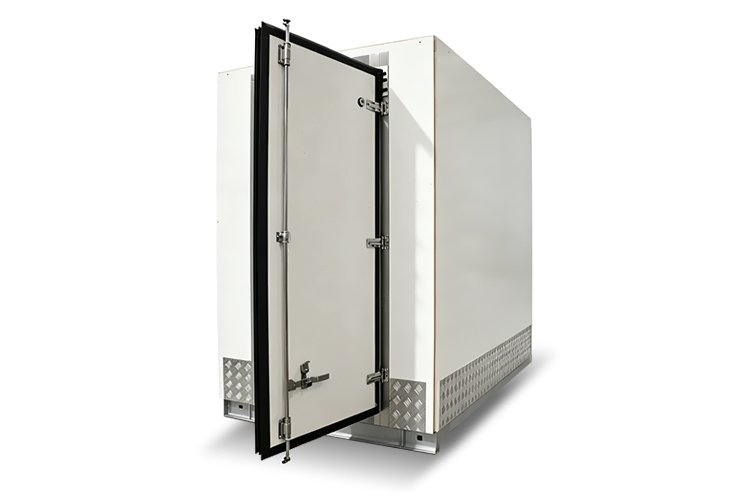

Side Door Dimensions	850 mm (Width) x 1600 mm (Height) x 75 mm (Thickness)
Curtain	PVC strip curtain
Ceiling Lights	12/24V multi-voltage LED lights
Temperature Zone	Removable soft partition
Cooling Unit	Intelligent temperature control system

Notes:

The external structure is made of FRP foam panel, which is very sturdy and light in total weight, with a built-in soft partition.
Adopt an intelligent temperature control system, a high-efficiency temperature partition.
Installation of stainless steel cabinet can meet the items with different needs for temperature.
